Breguet BR-1001 Taon
Fictional profiles of a prototype aircraft.
Breguet Br.1001R with Fiat G.91R-3 nose. I included some images that show the overall process, from AutoCAD to Paint Shop Pro.
July 2010

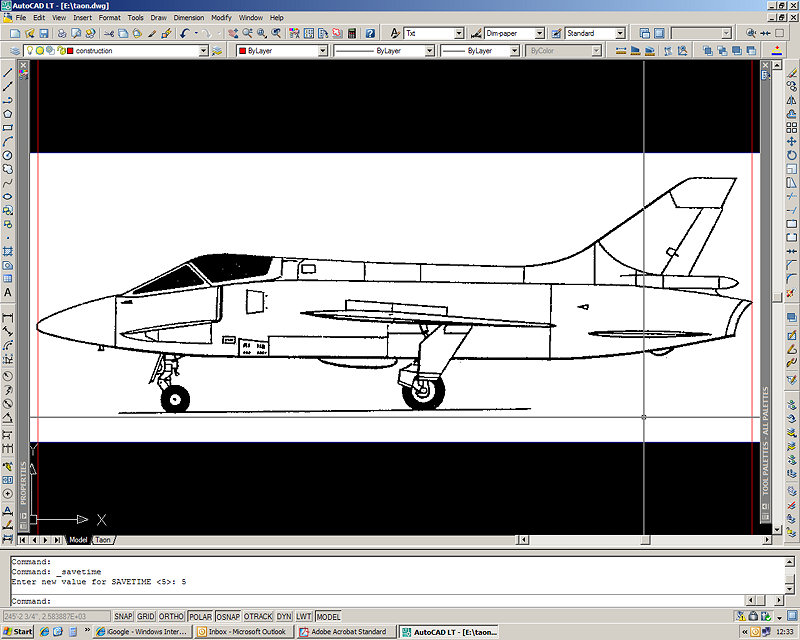

Scaling the reference image in AutoCAD.

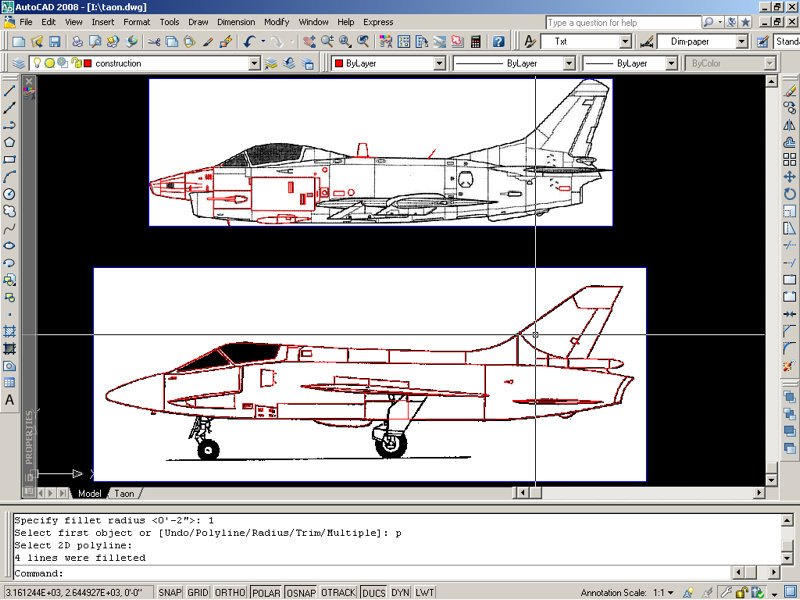

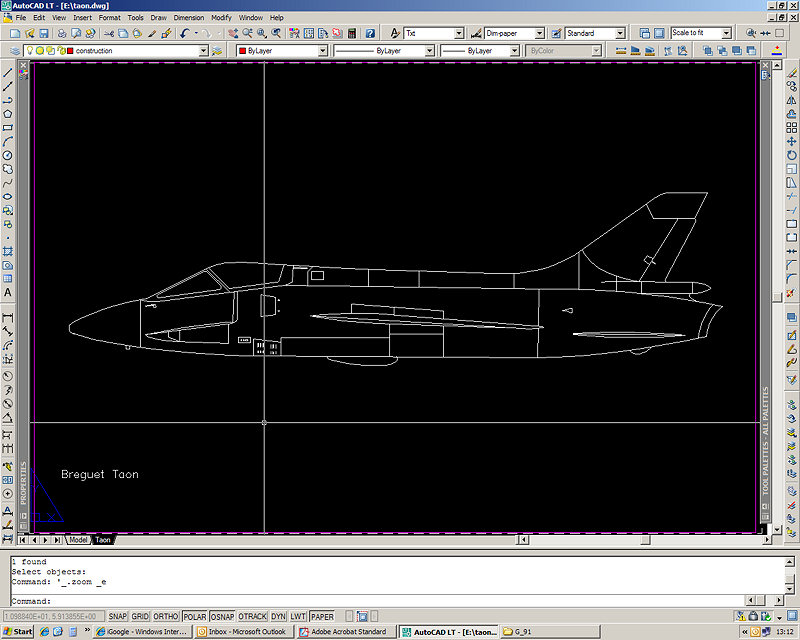

Initial drafting in AutoCAD.

Lineweights, layers, layout, etc. in AutoCAD.

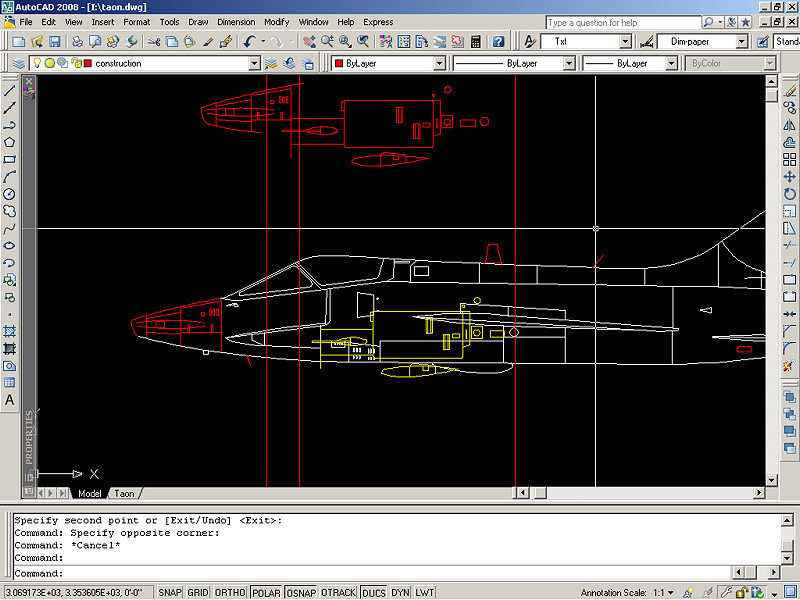

Drafting some Fiat G.91 details in AutoCAD.

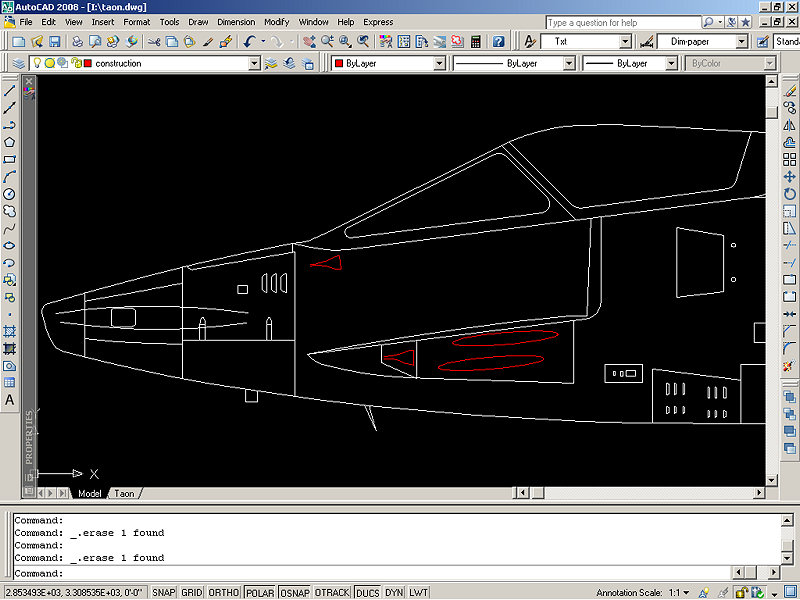

Adding the Fiat G.91 details in AutoCAD.

Lineweights, layers, layout, etc. in AutoCAD.

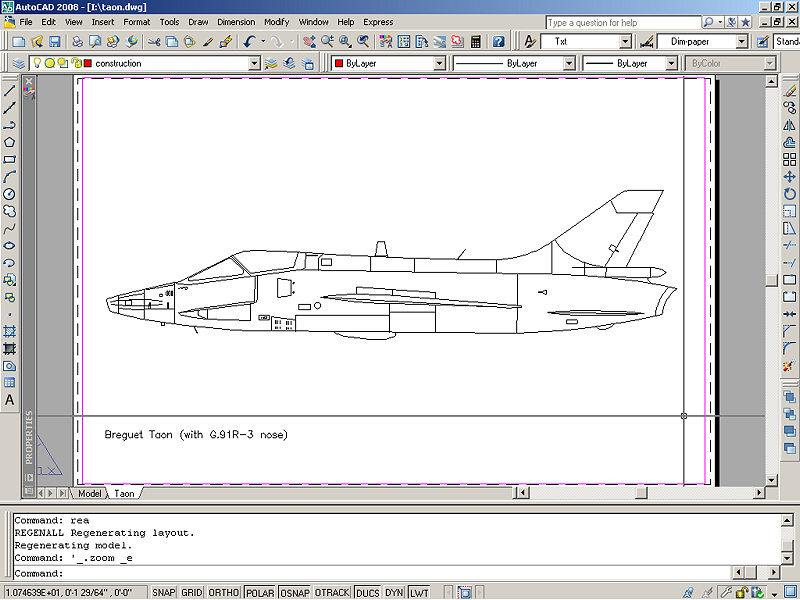

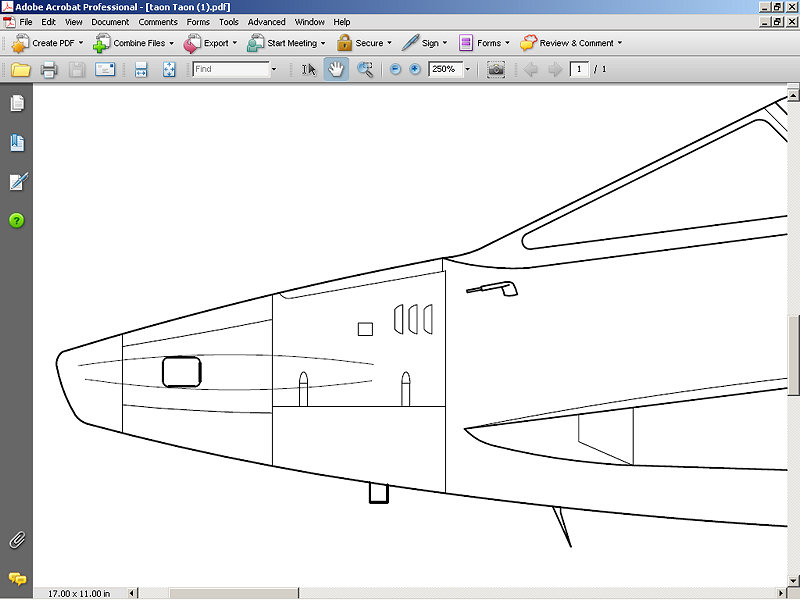

Plotting the AutoCAD drawing to a PDF, then zooming in.

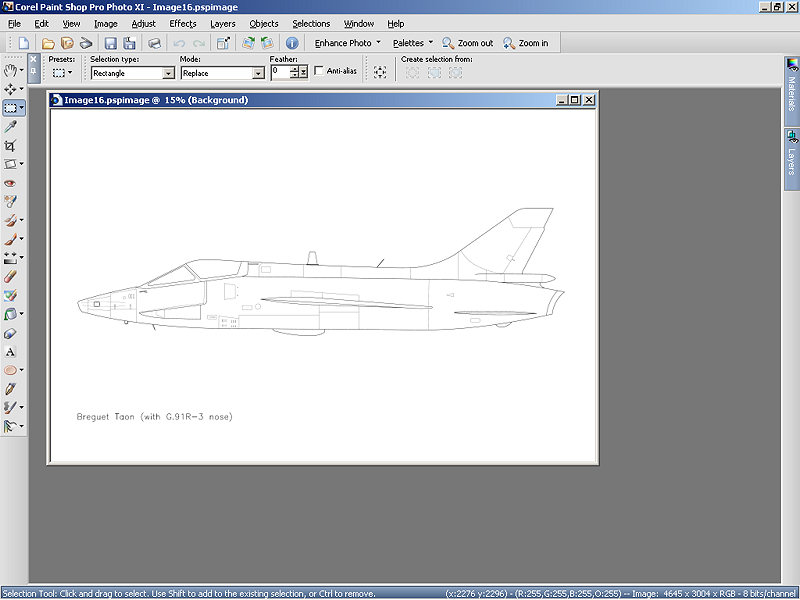

Imported into Paint Shop Pro.

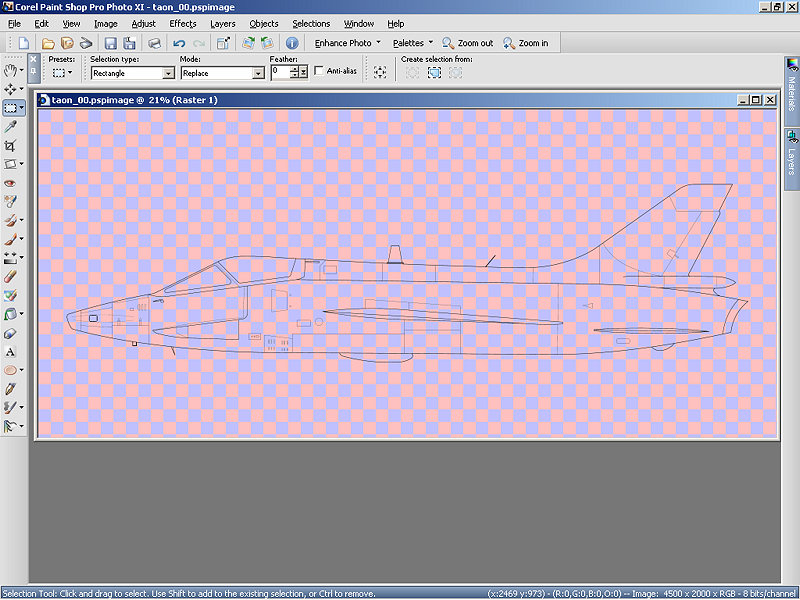

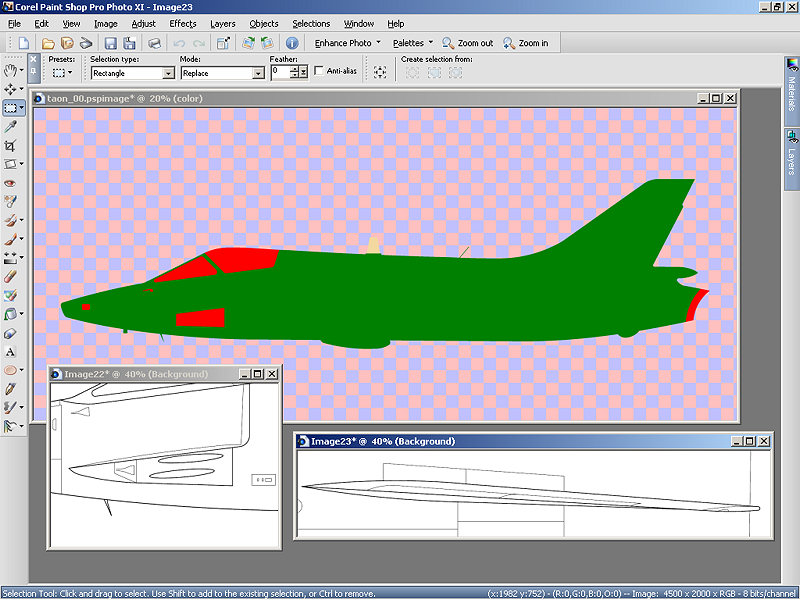

Transparency.

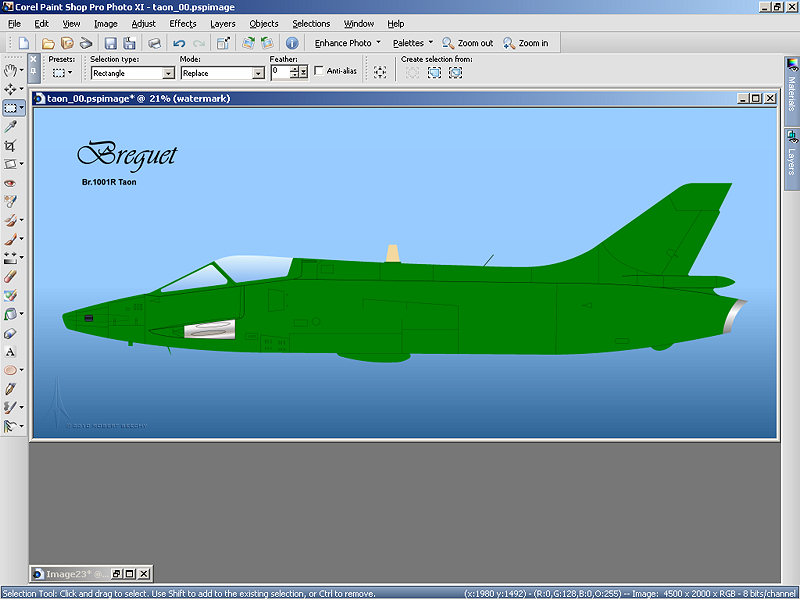

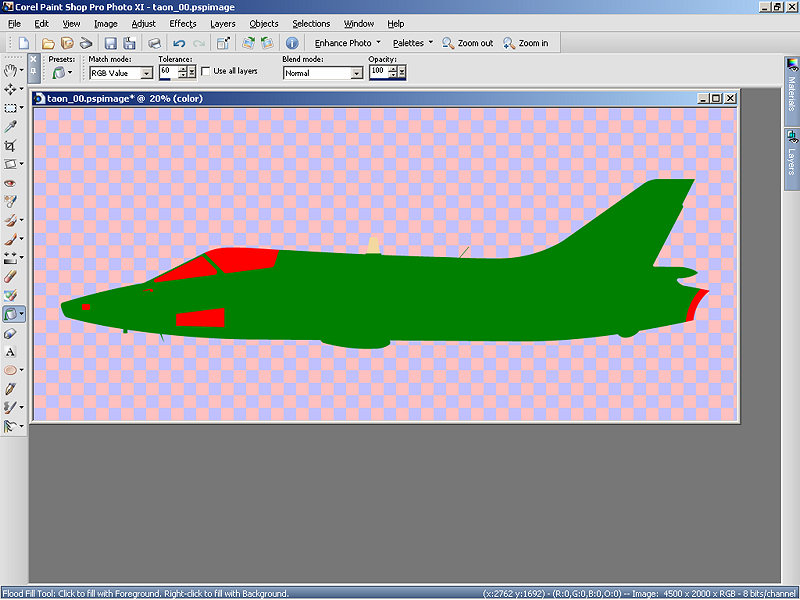

Adding placeholder colors in Paint Shop Pro.

Drafting some additional details in AutoCAD.

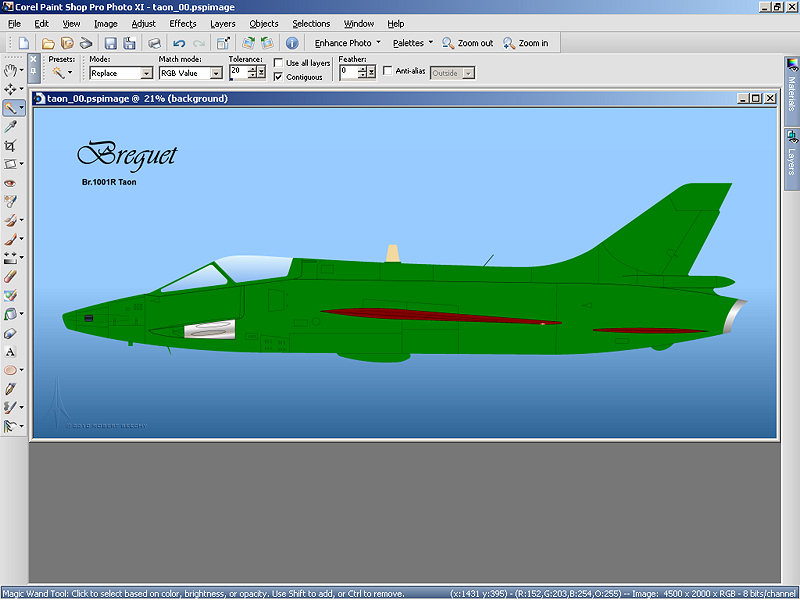

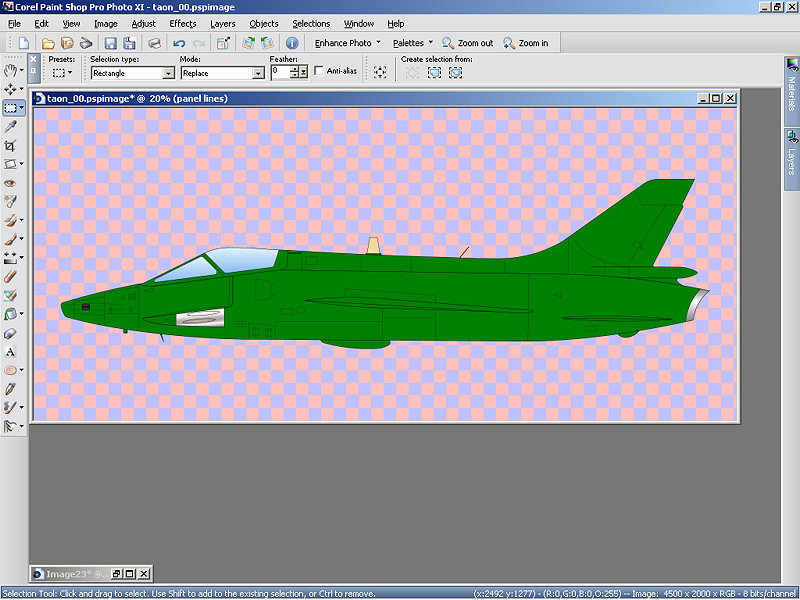

Adding details in Paint Shop Pro.

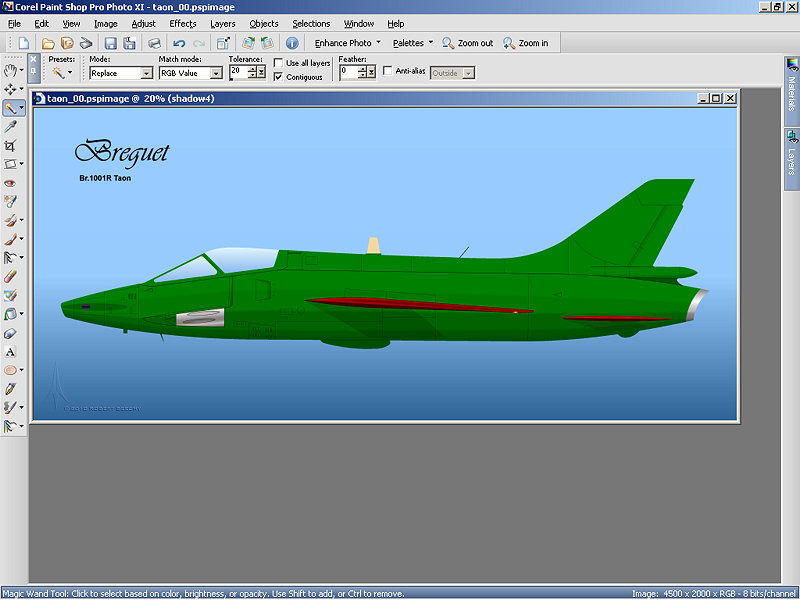

Canopy, metal areas, lines in Paint Shop Pro.

Text and background in Paint Shop Pro.

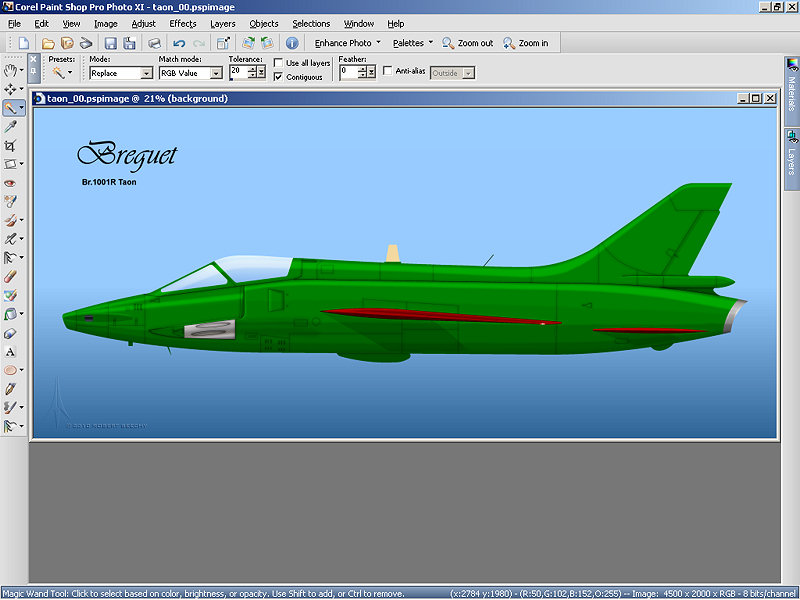

Wing and tail in Paint Shop Pro.

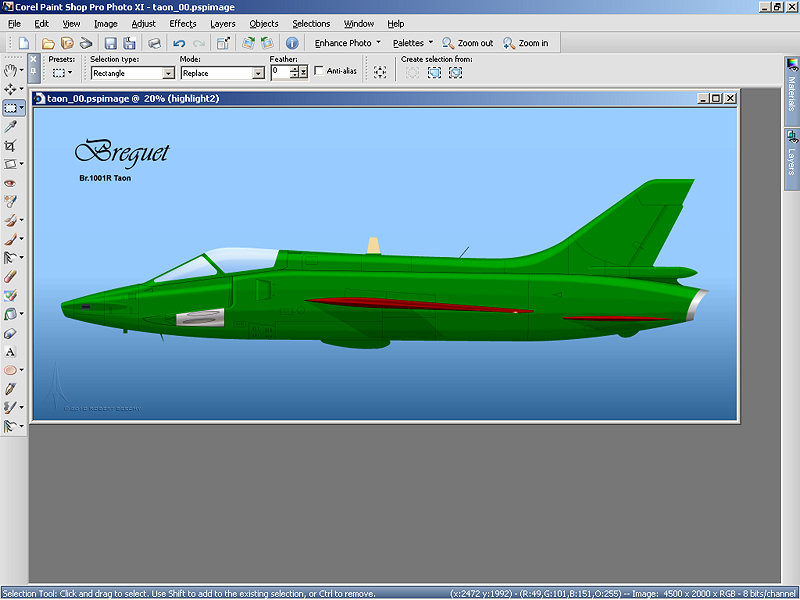

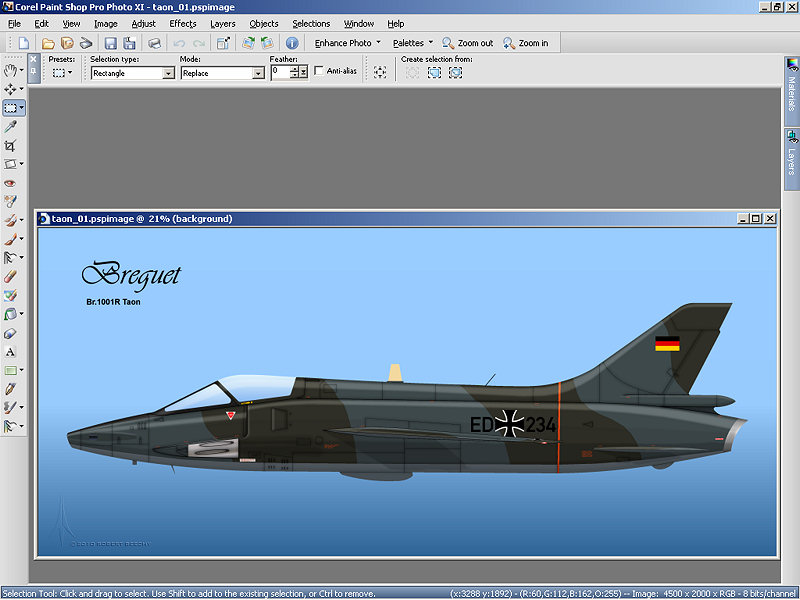

Shading in Paint Shop Pro.

Lighting in Paint Shop Pro.

Base profile complete in Paint Shop Pro.

Creating a color profile in Paint Shop Pro.

Br.1001R Taon, Luftwaffe

Br.1001R Taon, Armée de l'Air

Br.1001R Taon, Aeronautica Militare Italiano

Br.1001R Taon, US Army AO-4 Chippewa

Br.1001R Taon, US Army AO-4 Chippewa
