Rooftop Equipment Sled

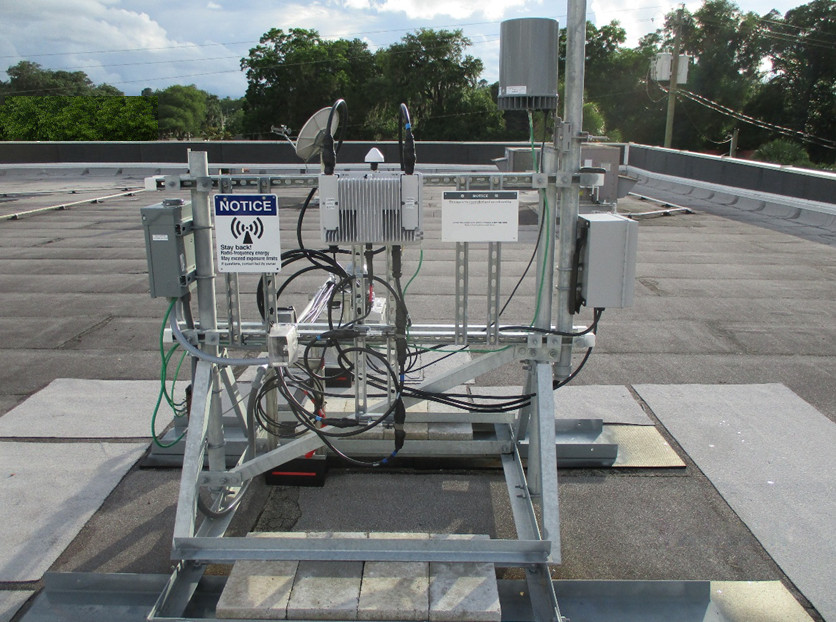

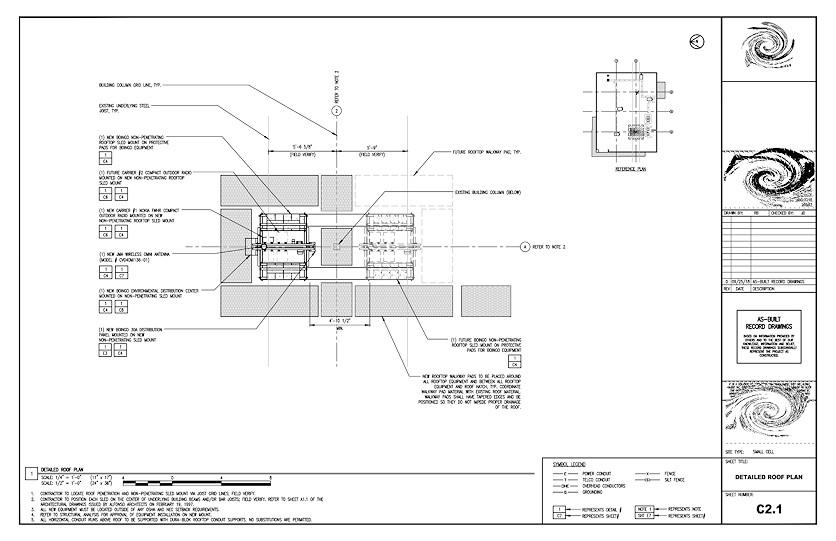

I worked with a structural engineer to draft this rooftop equipment sled detail. It was designed in 2018 for a project to install new small cell antennas inside about a dozen existing buildings that are part of a pharmacy store chain, located in the North Central Florida area. Additional equipment was installed on this sled on the building rooftop. I was the project manager, working with a team of drafters to create the permit drawings. As-built drawings were also provided at the completion of the project. I also worked with a vendor to provide a Legal Description deliverable for each property. Other deliverables included a Site Survey with Report & Photos, as well as a Structural Design for the rooftop equipment sled.
